CGDI CG70 Airbag Reset Tool Clear Fault Codes One Key No Welding No Disassembly

Description:
CGDI CG70 airbag reset tool adopts the new technology of intelligent diagnosis, and clears the fault code with only one key. No need to open the cover, no welding wire, no need to disassemble the chip, just connect the pin port, this product can diagnose the airbag module information, clear the fault code, and make the vehicle perfectly revived.



CGDI CG70 Airbag Reset Tool Highlights:

1. Free Update Online for 1 Year.

2. No dismantling, no welding, non-destructive repair.

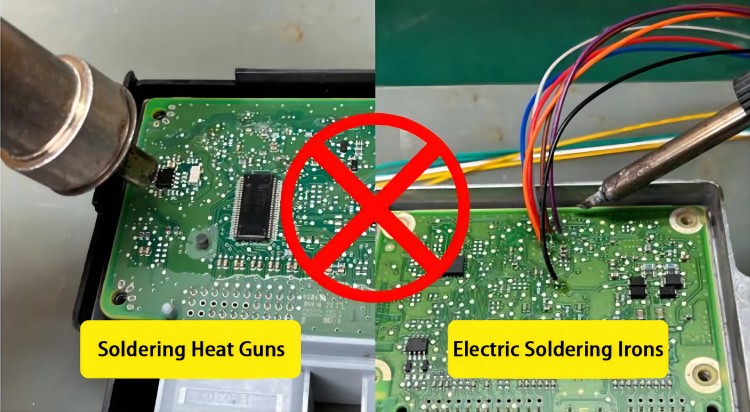

Simulate the principle of car communication, connect the pin port, you can read / clear the fault code of the airbag module with one key. Abandon the traditional wire welding / chip removal mode, and use pin diagnosis to avoid operational risks caused by electric soldering irons / soldering heat guns.

3. Intelligent diagnosis, clear fault codes
Support multiple diagnostic protocols, CAN protocol, K/L protocol, SWCAN protocol and J1850 protocol, compatible with different car models and airbag modules.



4. Specific function, fast retrieval.

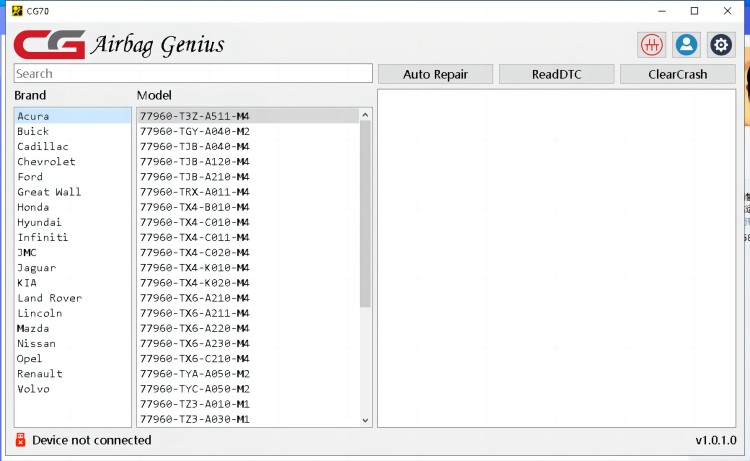

Specialized in airbag module repair. The entire software is designed according to the model number. It is simple and clear, with clear directories, and the built-in search function can help us quickly find the operation interface.

5. The wiring is clear and the pins are clearly defined.

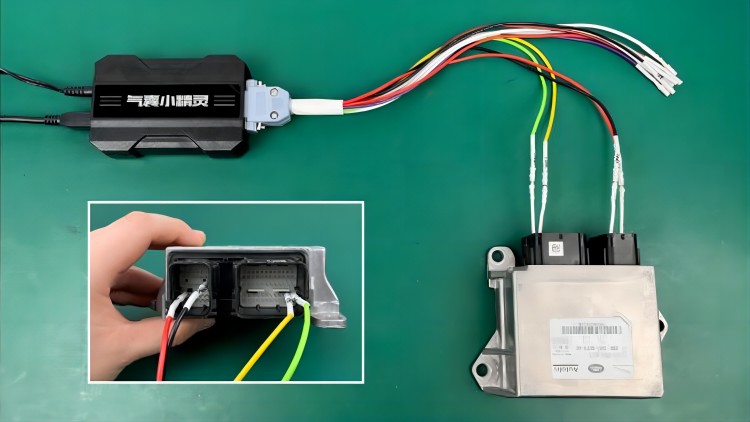

The software has a built-in clear wiring diagram, and the position of the " button" is obvious, which is integrated with the interface and does not hinder the operation process. All wiring diagrams are taken in kind, with clear pins, and the communication line number is marked to avoid user wiring mistakes.

6. Independent research and development, real-time update.

Supported Vehicle Brands:

Buick, Chevrolet, Ford, Great Wall, Hyundai, Infiniti, Jaguar, Kia, Land Rover, Lincoln, Mazda, Nissan, Opel, Renault, Suzuki...



CGDI CG70 Software Newest Update V1.0.5.0 Download
1. Tesla has added 14 airbag models
2. Toyota models add 192 airbag models
3. 112 new airbag models are added to Lexus models

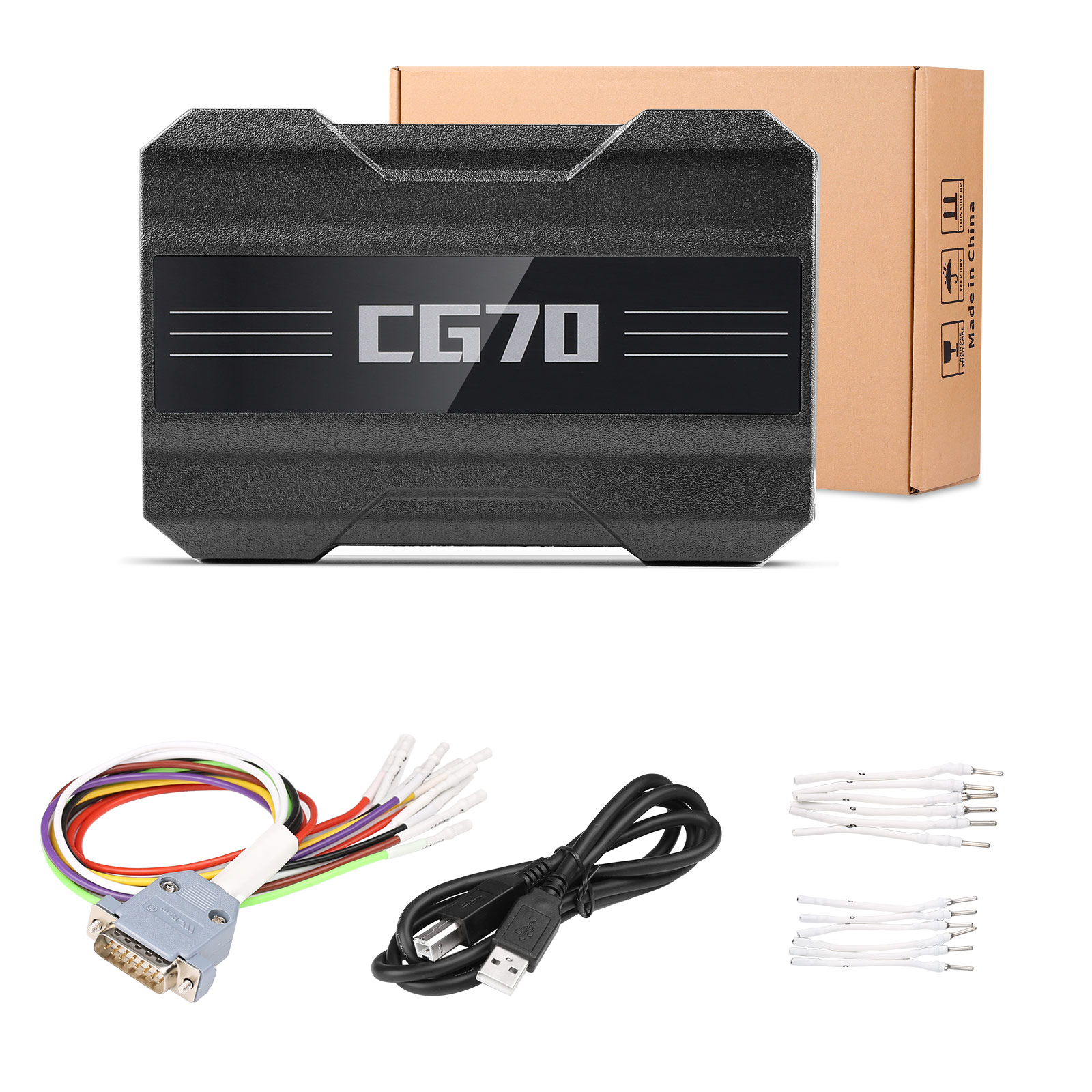

Package Includes:

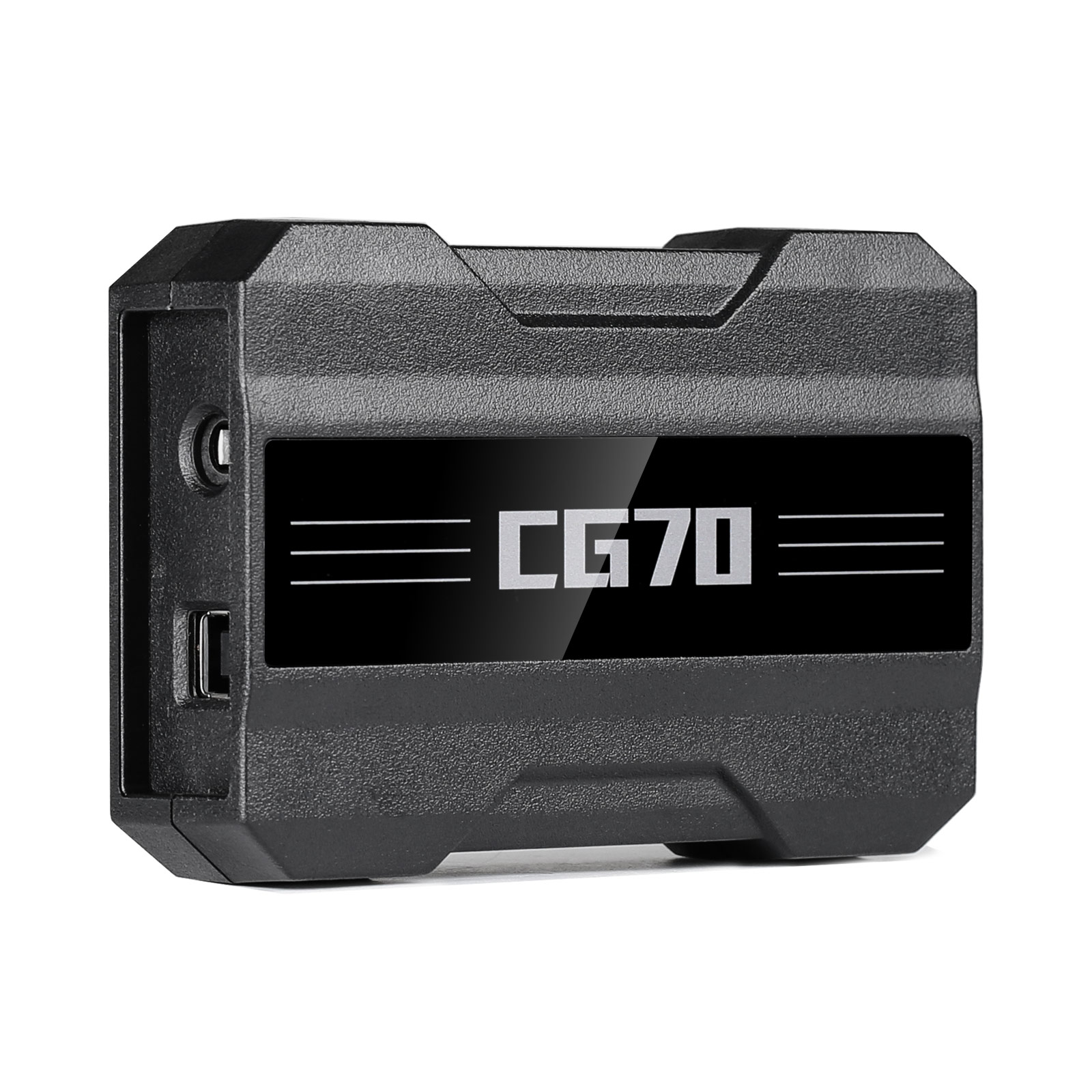

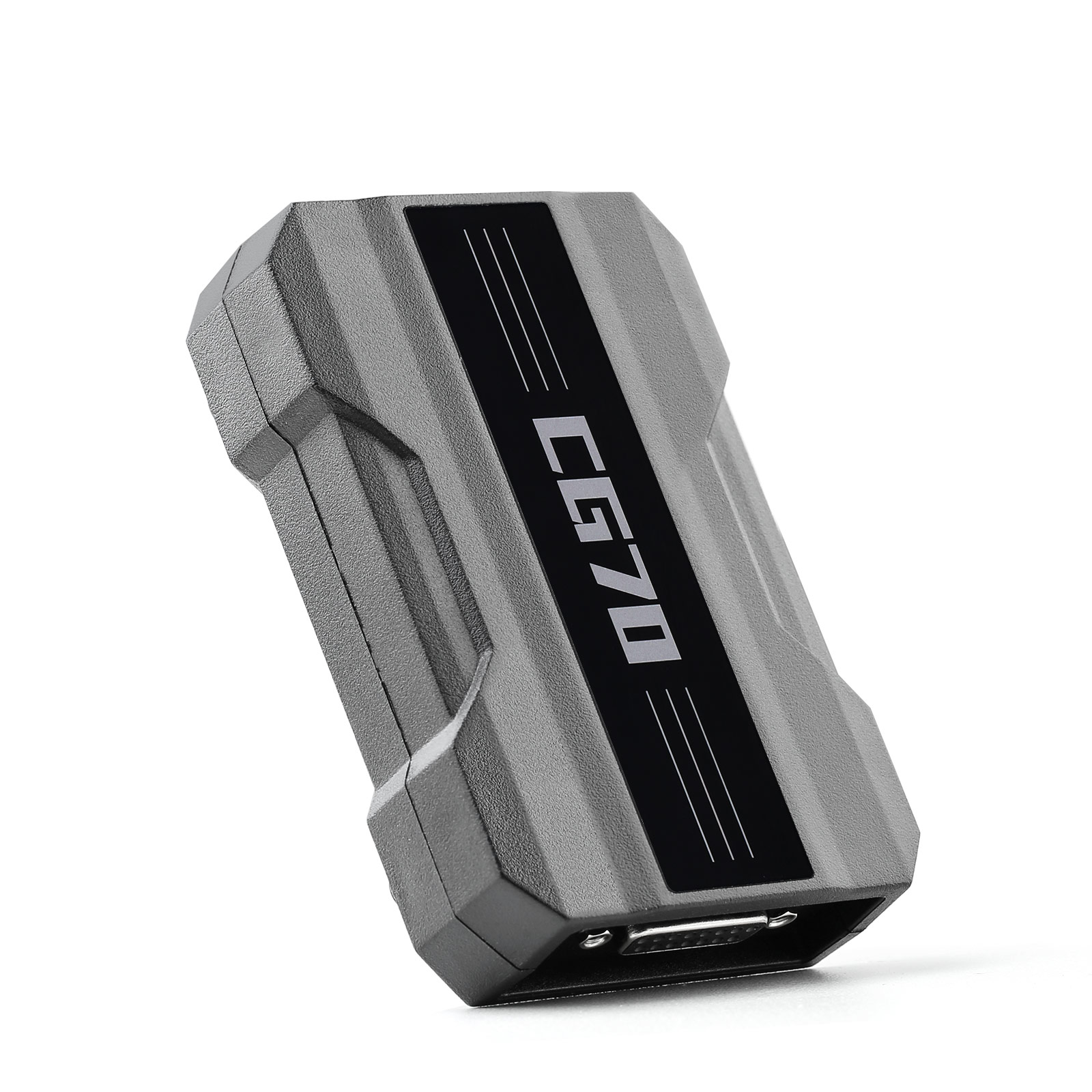

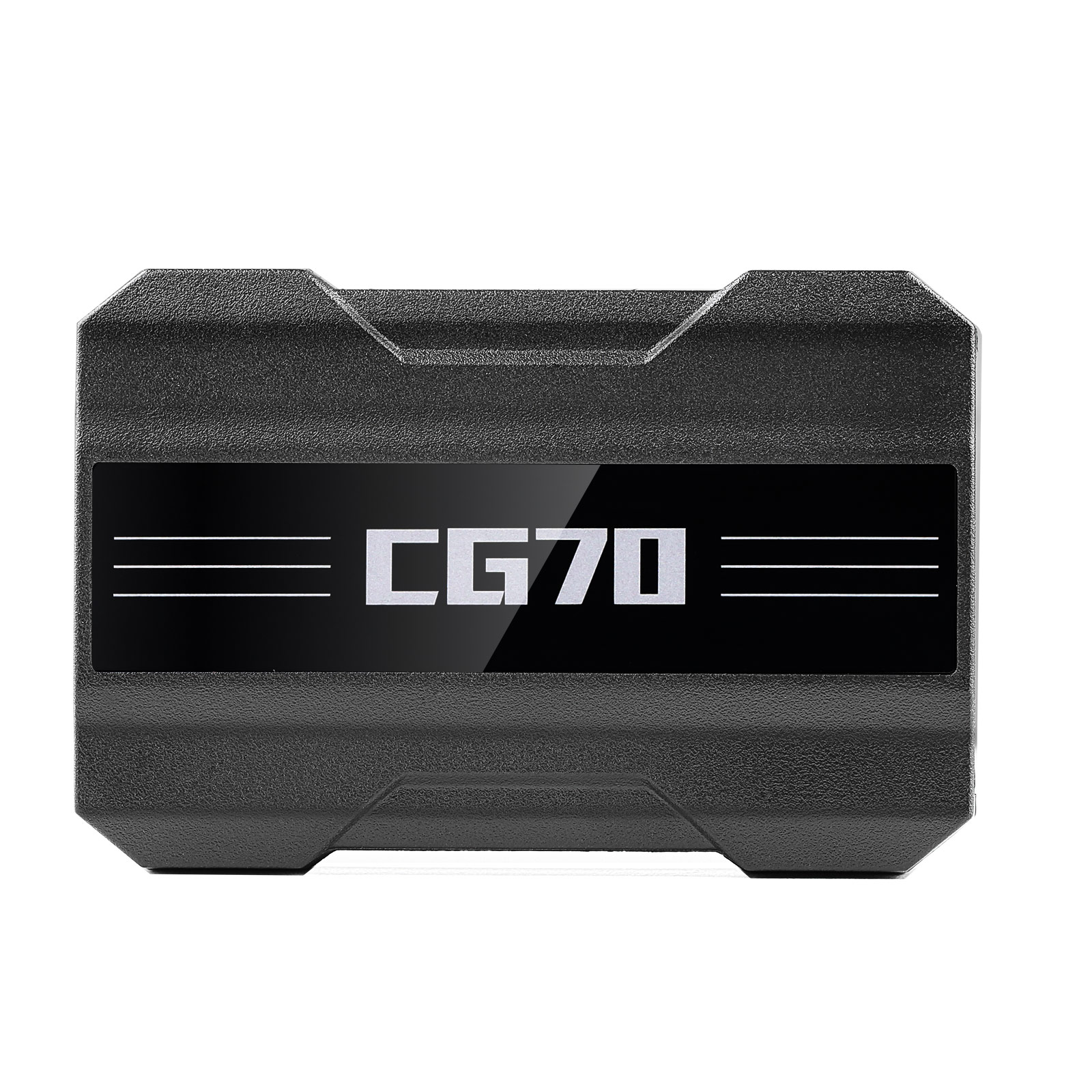

• 1pc x CGDI CG70 Host
• 1pc x Jumper
• 1pc x USB Cable
• 6pcs x G-type Adapter Cable
• 6pcs x D-type Adapter Cable

---

We are here for you:

Email: Sales@CGDIprog.com
WhatsApp: +86-18205996549
Skype: Sales@CGDIprog.com

CGDI CG70 airbag reset tool with auto repair function has been tested and proven to effectively perform the following tasks on Ford Fiesta MK6 airbags: reading Diagnostic Trouble Codes (DTC), reading and writing EEPROM, and successfully clearing crash data. Importantly, these repairs can be accomplished without the need for dismantling or welding, ensuring a non-destructive repair process.

Testing process:

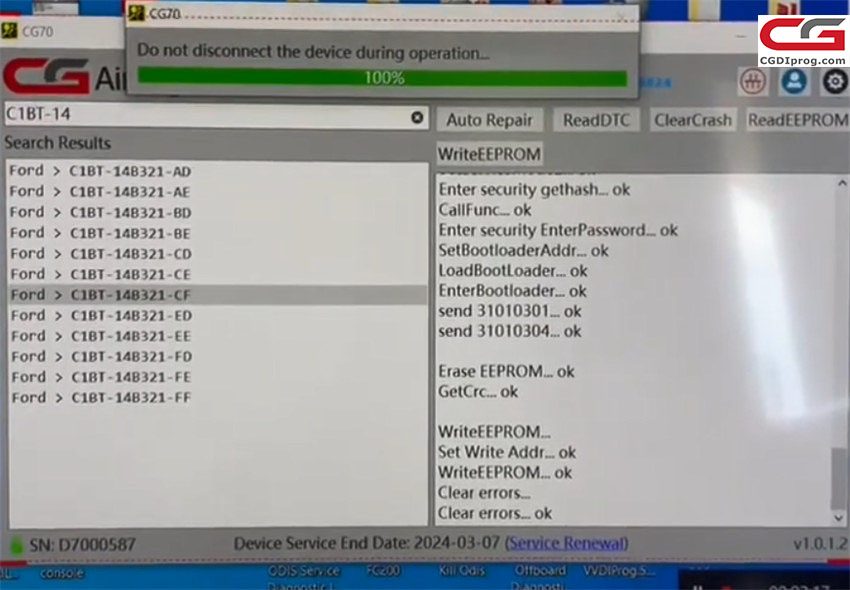

• Launch CG70 software
• In the search box, enter "C1BT-14" to quickly find the Ford model>>C1BT-14B321-CF

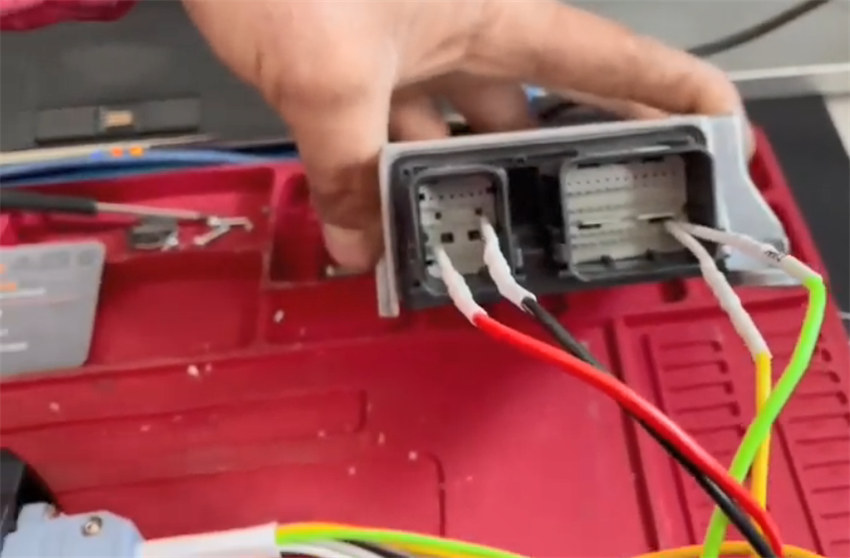

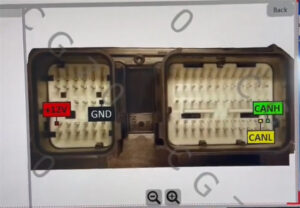

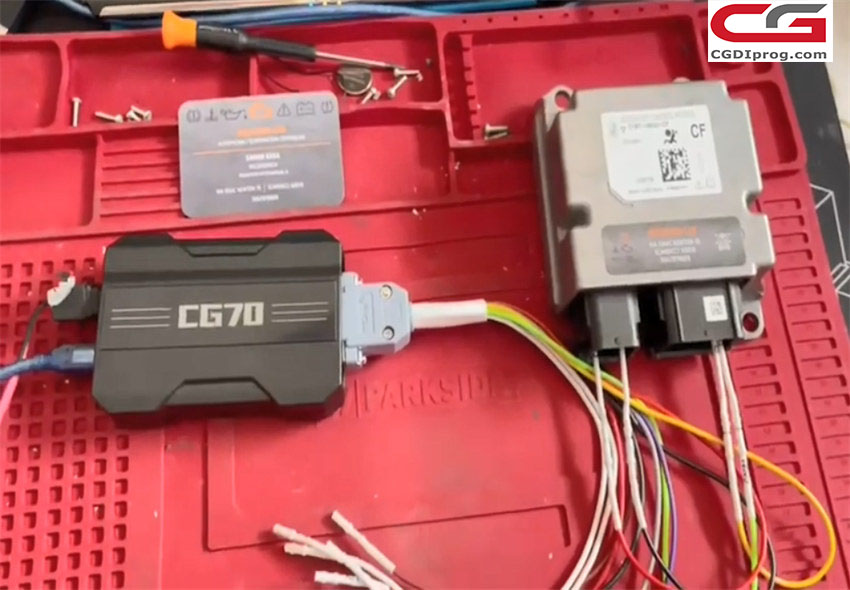

• Refer to the wiring diagram to ensure proper connection between CG70 and the MK6 airbag ECU
• Additionally, connect CG70 to your computer using a USB cable

• Next, click on "Auto Repair" button to begin the process

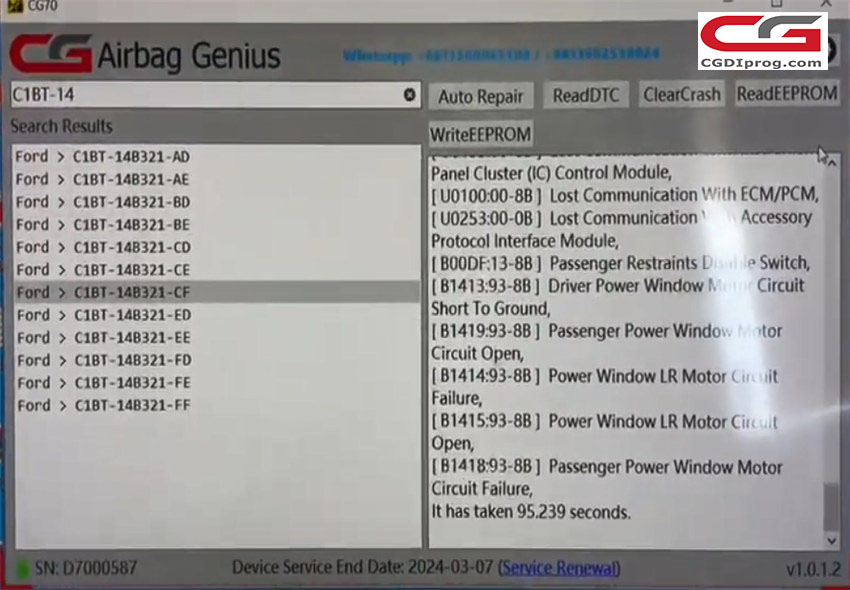

• The fault code readout shows B1193:00-8B, indicating that the CRASH Event Storage is full and locked

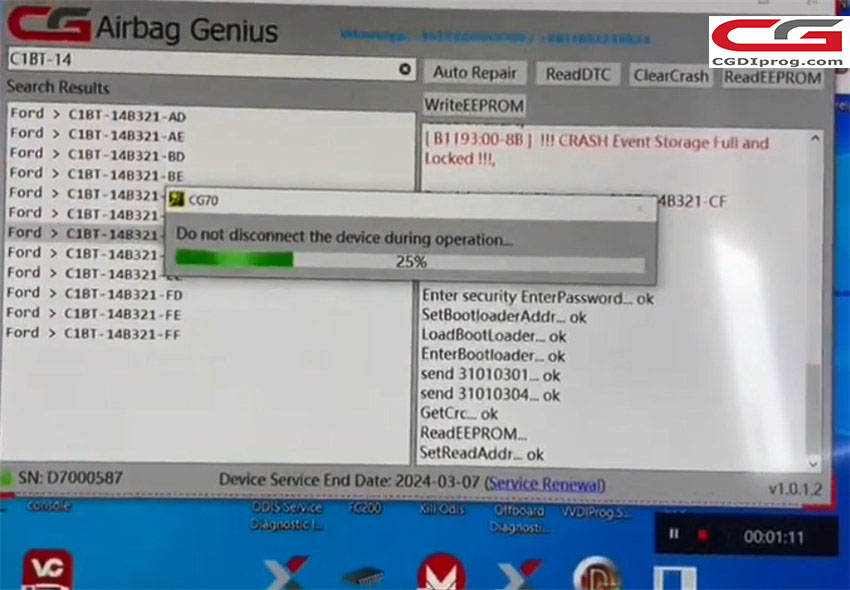

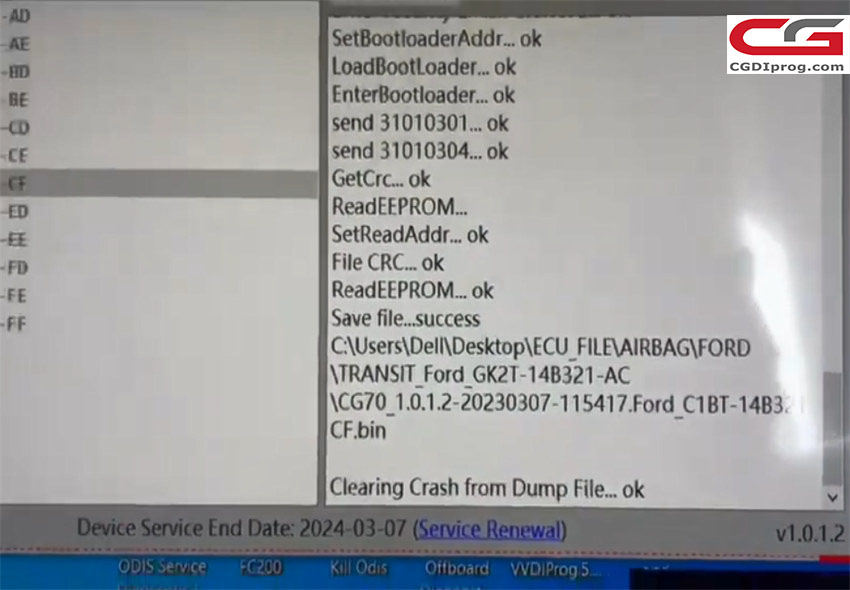

1. Proceed with the automatic reading of EEPROM data
2. Remember to manually save the file after the reading process is complete.
3. Then the tool will start clearing the crash from dump file, erasing EEPROM data, writing new EEPROM data, and clearing any errors
4. The whole process has been completed successfully, and the crash has been cleared.
