EU/US Ship CG FC200 ECU Programmer V1.2.3.0 Full Version with All License Activated Support 4200 ECUs and 3 Operating Modes

2024 CGDI FC200 ECU Programmer & ISN OBD Reader V1.2.1.0

What's the CGDI CG FC200 ECU Programming Tool:
FC200 ECU programmer is designed for ECU/EGS clone, and it supports 4200 kinds of ECUS/EGS, 3 types of operation modes, involving 80% of the models on the market. FC200 unit has data loss prevention, automatic verification, 100% accurate analysis of BMW's ISN code, support for VIN code modification and data cloning of various models.

What's more, it has 3 exclusive support for DTC shielding and function shutdown. With the exquisite design, FC200 is your trusted auto repair assistant in various operating environments.


CGDI CG FC200 Highlights:

1. Calculates checksum online. Check FC200 Support Checksum List
2. Bosch search for ECU type is free.
3. Supports connection by Bench, Boot, OBD.

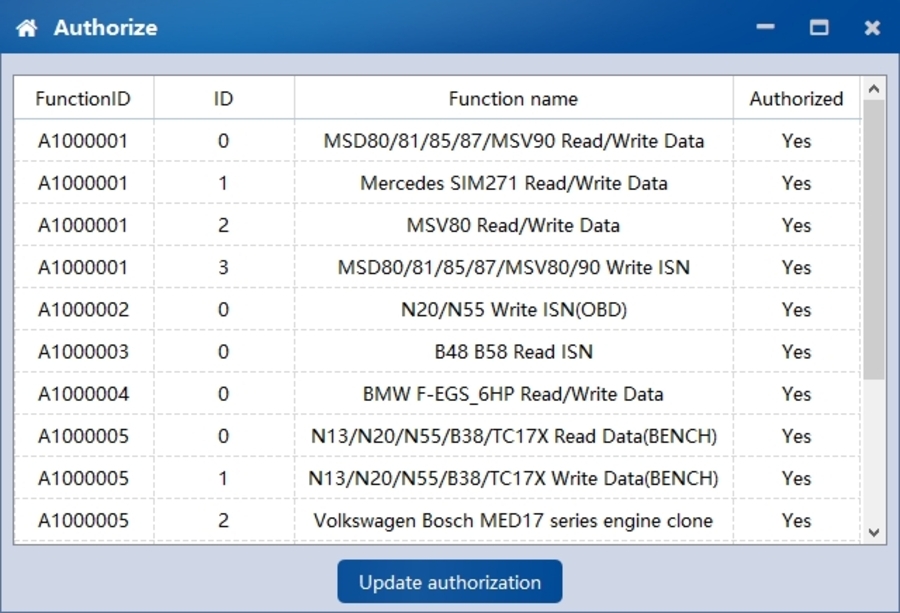

4. Supports GM E38, E39, E67 ECU, ZF 9HP Gearbox, etc.

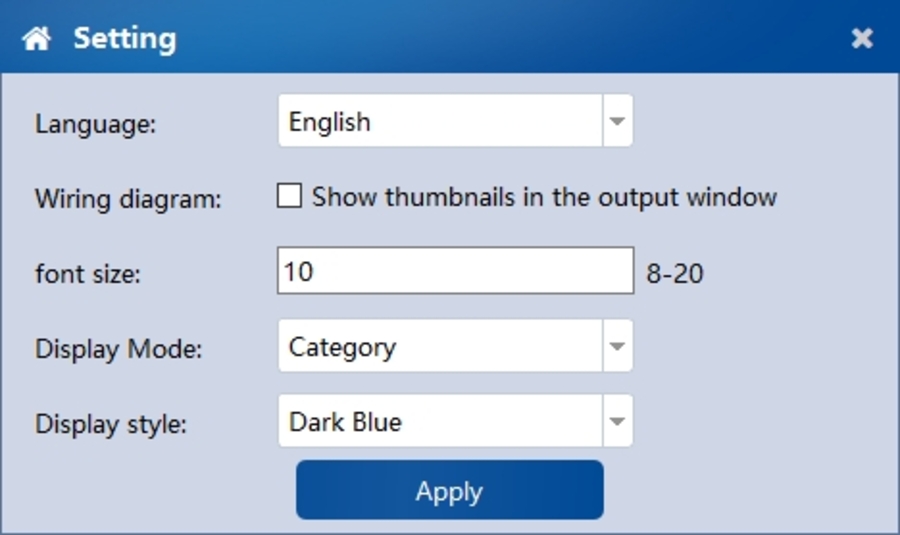

5. Multi-Language: English, French and Simplified Chinese (For Spanish, Polish Turkish and Traditional Chinese, will need to pay $130 to get authorized seperately with serial number.)
6. Supports 4200 ECUs/EGS, covering 80% of market models.
7. Reads BMW ISN Code via OBD, replacing CG AT200 ECU Programmer.
8. Original from CGDI with free online updates for 1 year, subscription at $199/year.
9. Three operation modes: CAN-bus, No disassembly (platform mode), and Boot mode.
10. Full version with all licenses activated, no extra charge. Lastest Software version: V1.1.2.0.

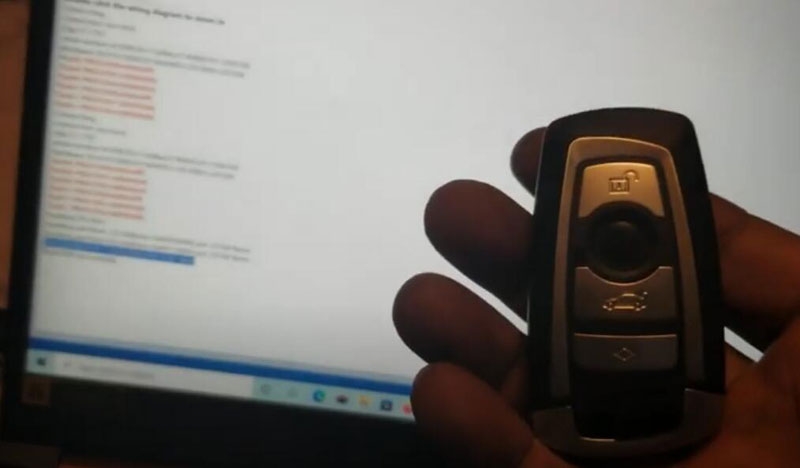

11. Supports key programming with CGDI BMW, VVDI 2 Full, Mini ACDP, AUTEL IM508, IM608 Pro, etc.

Note: The equipment produced before 2021.09.10 will be automatically activated, and the service time will be valid until 2022.09.10. For equipment produced after this time, after the software is updated, a pop-up window will prompt to activate. Only after activation, some functions related to the server can be used normally. The validity period starts from the day of activation, and the validity period is one year.

CG FC200 ECU Programmer Functions:
1.Protect original car parts

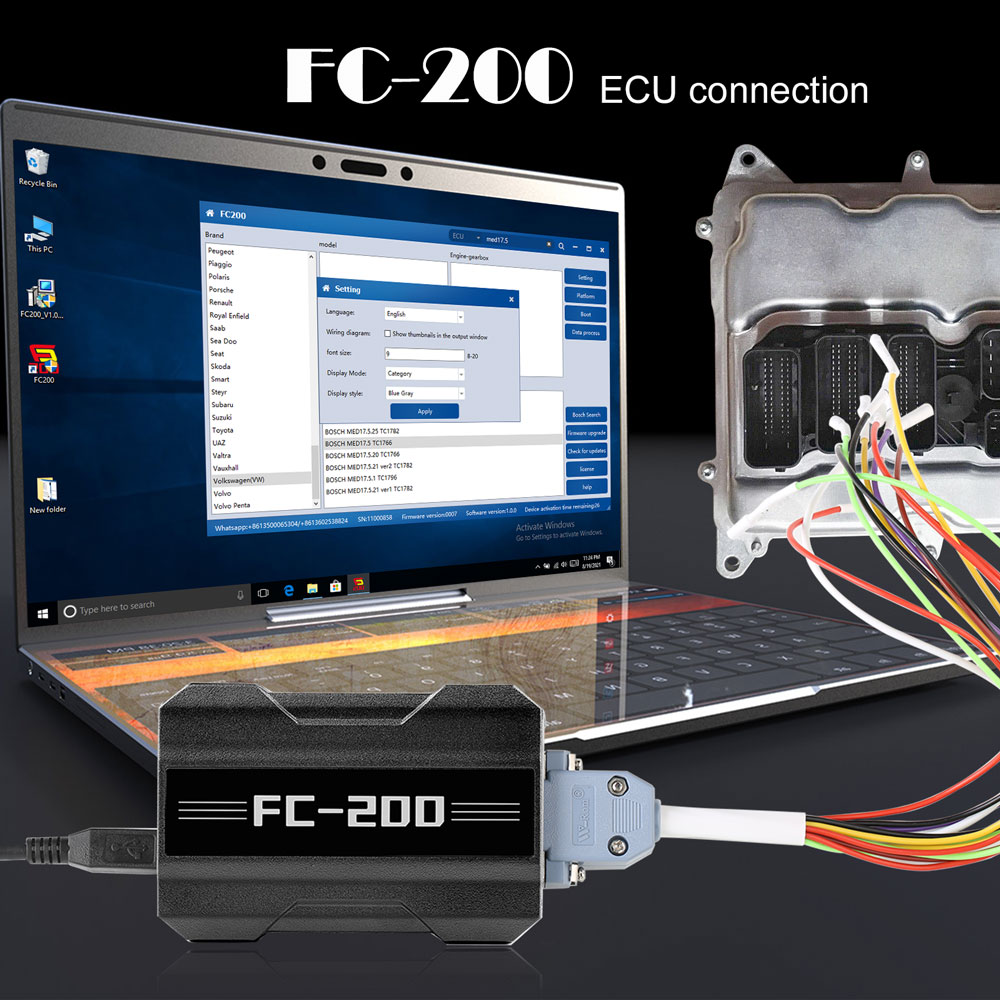

More than 98% of ECUs support BENCH mode and OBD mode, no need to open the cover and punch holes to protect the original car.
FC200 not only supports BMW ECU but also supports over 3000 ECUs like KTAG + Kess, Kessy, Dimsport, etc.
Check FC200 Support ECU List

2.Intelligent Recognition
The "identification" function can help users better diagnose whether the ECU module is communicating and check whether the wiring is wrong. If the ECU module can communicate without damage and the wiring is correct, the recognition can be successful, and the chip information, hardware information and firmware information can be read out.

3.Module clone
Supports ECU data reading and writing and module cloning, no synchronization matching, no online programming, data sub-regional burning, automatic verification, and maximum protection of chips and modules.

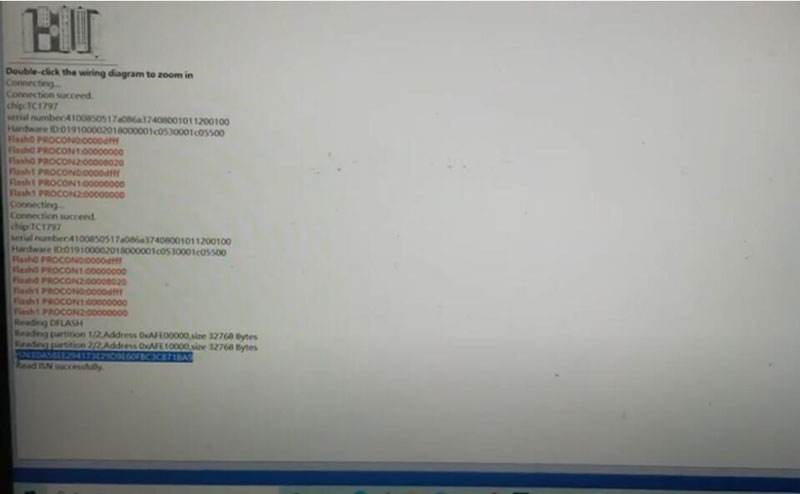

4.ISN read and write
Supports engine computer ISN code acquisition for all BMW series (including Mini), which is convenient for key matching and anti-theft maintenance. Check CG FC200 BMW ISN Reading Writing List

5.VIN modification
Solve the problem of double VIN or VIN mismatch of vehicles, which is convenient for vehicle maintenance.

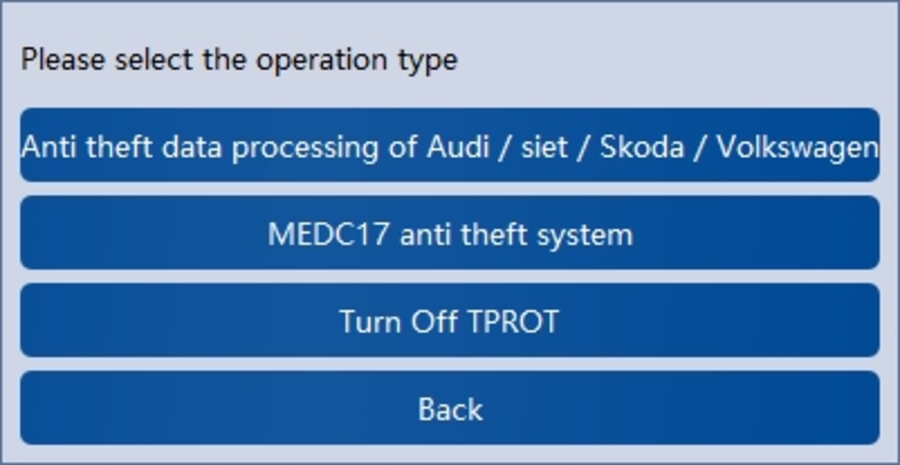

6.Data processing

• Support engine computer data analysis and modification for Audi/Seat/Skoda/Volkswagen models;
• Support the shutdown of Bosch MED/EDC17 series engine computer anti-theft system;
• Support the TPROT off function of Bosch VAG MEDC17 series, BMW/Mini MEVD17/EDC17 series, Hyundai/Kia EDC17/MED(G)17 series.

CGDI FC200 Software Features

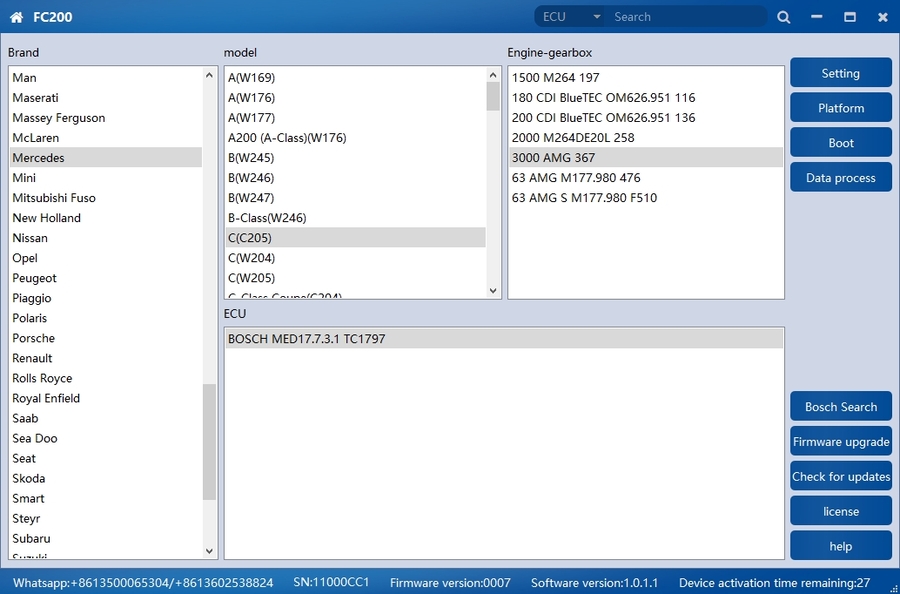

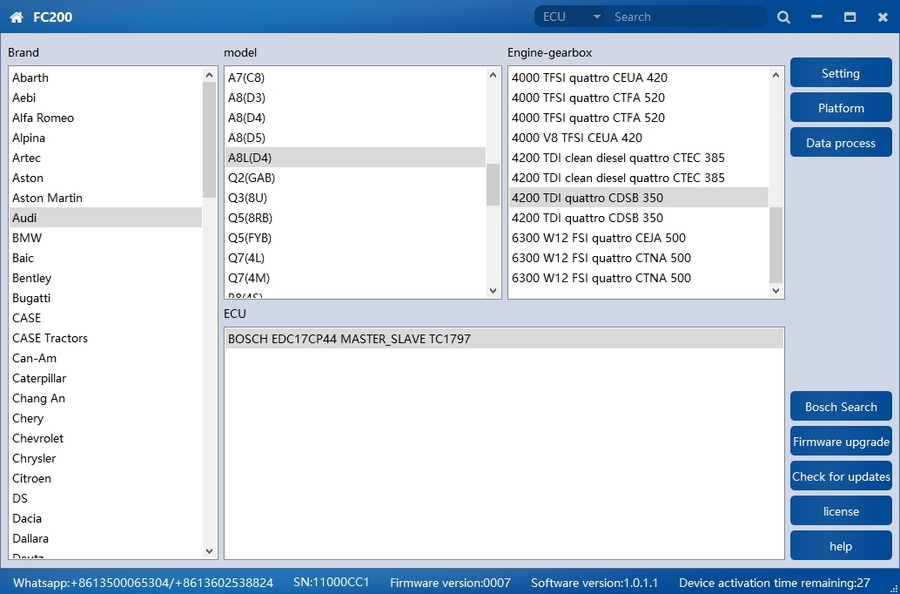

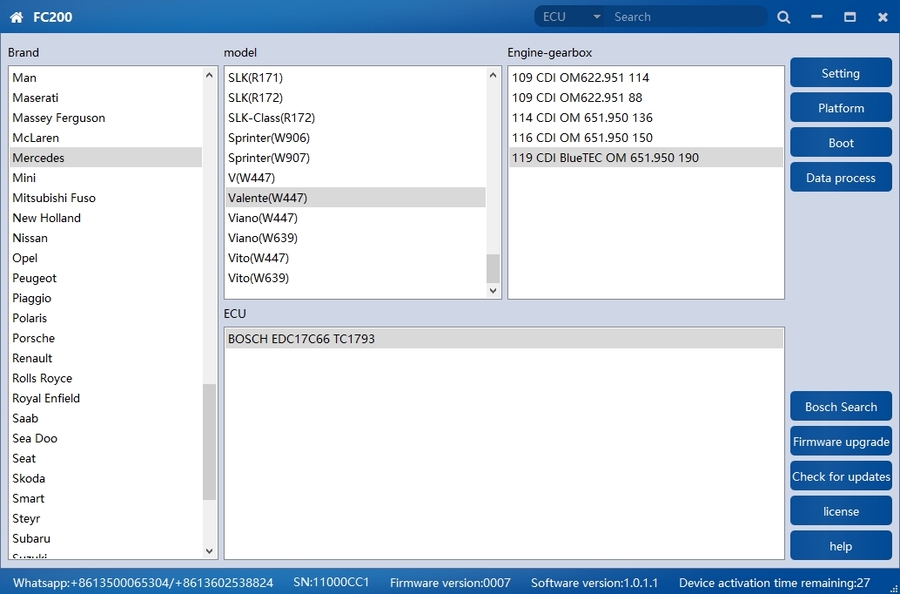

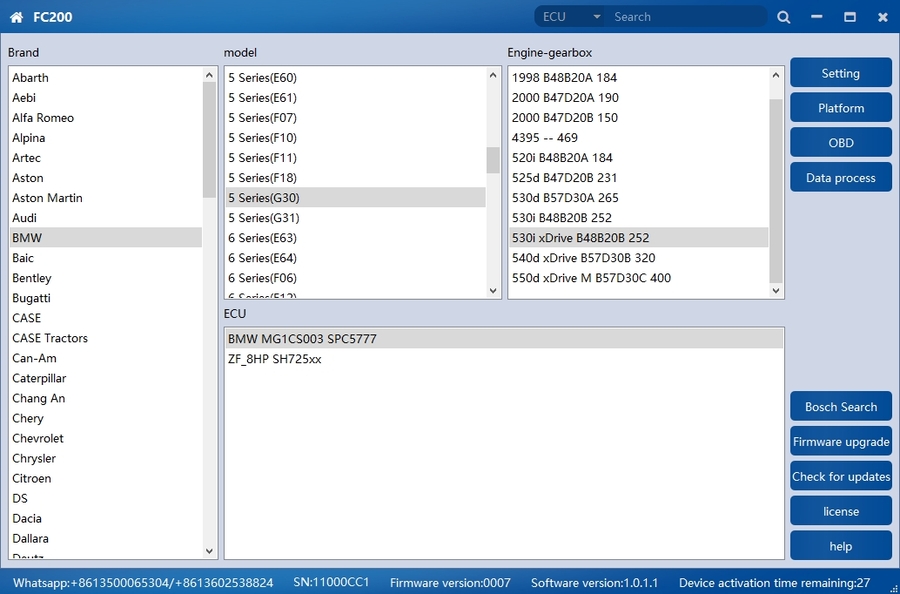

1.Interactive interface
The level is clear, the function is clear, and the "brand-model-ECU" structure is used to help users save time and accurately find the operating directory.

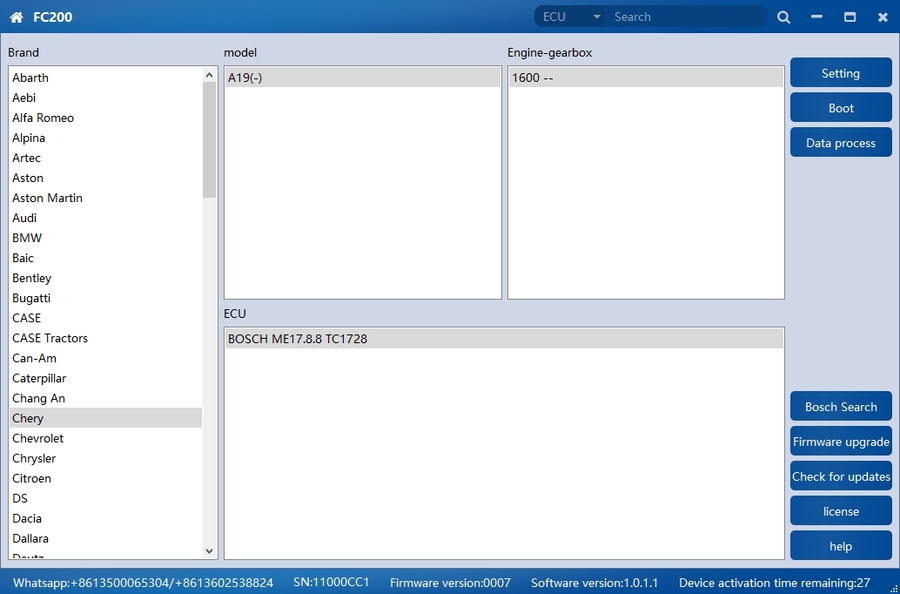

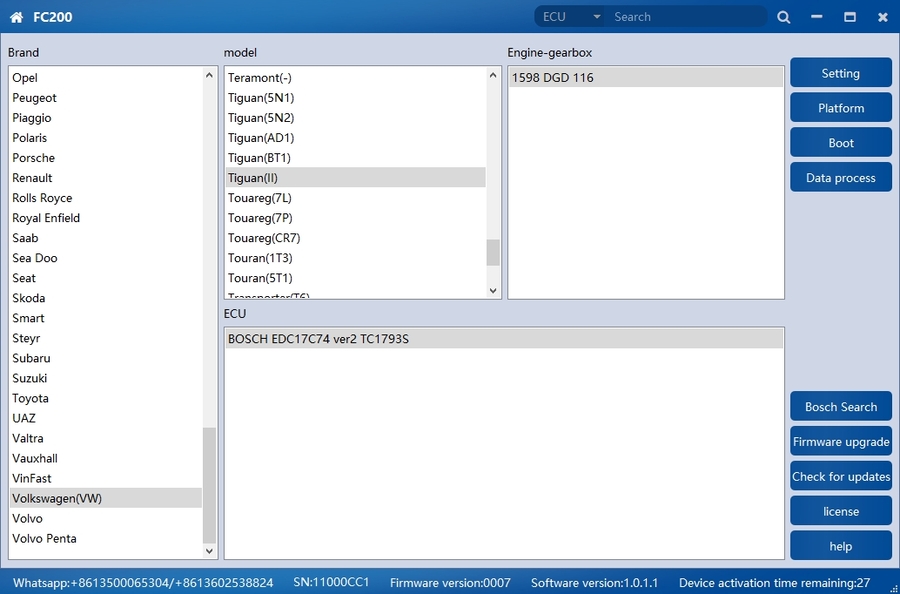

2.Built-in model search
Support ECU model and Bosch number search, avoid the trouble of level selection, and enter the function interface as quickly as possible.

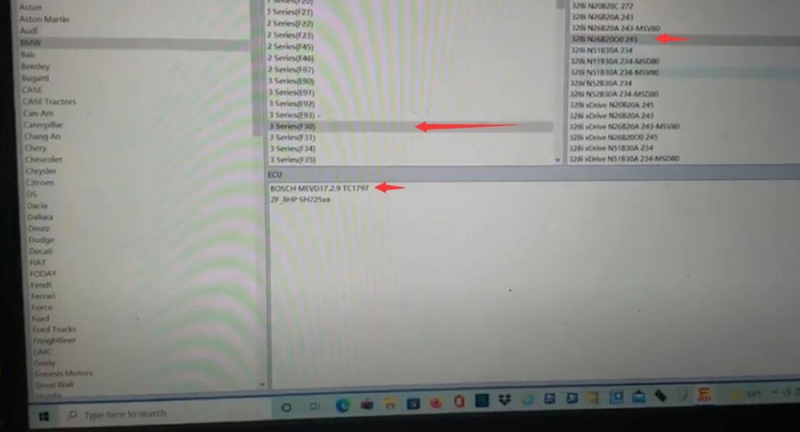

• ECU search: Take the BMW MSV90 engine computer as an example. First select "BMW", select "ECU" as the search condition, enter "MSV90", click the search button, and the ECU type will appear.
• Bosch number search: Take the Volkswagen engine computer as an example. First select "Volkswagen", select "Bosch Number" as the search condition, and enter "0261S10525". Please note that the Bosch number is a ten-digit number and the letters are capitalized. Click the search button, and the ECU type will appear.

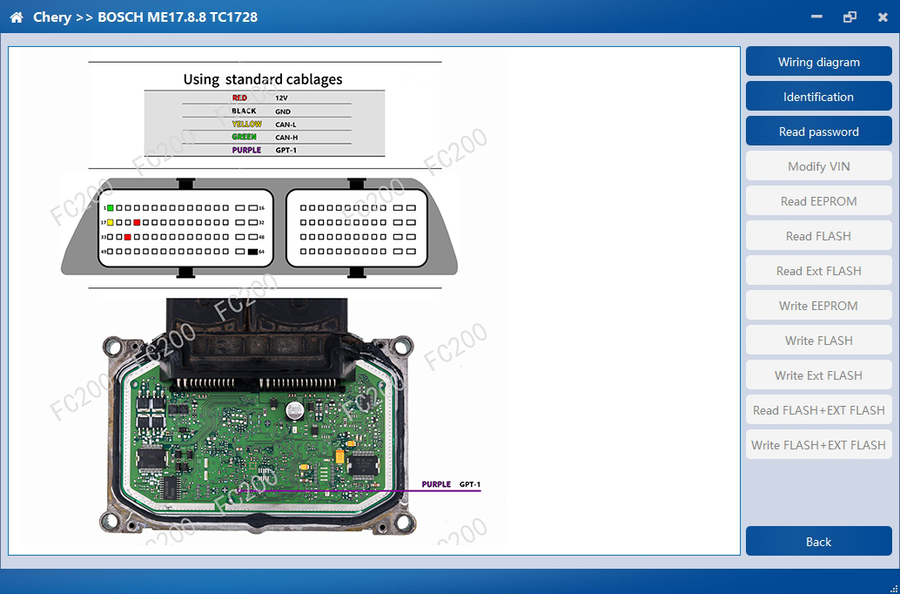

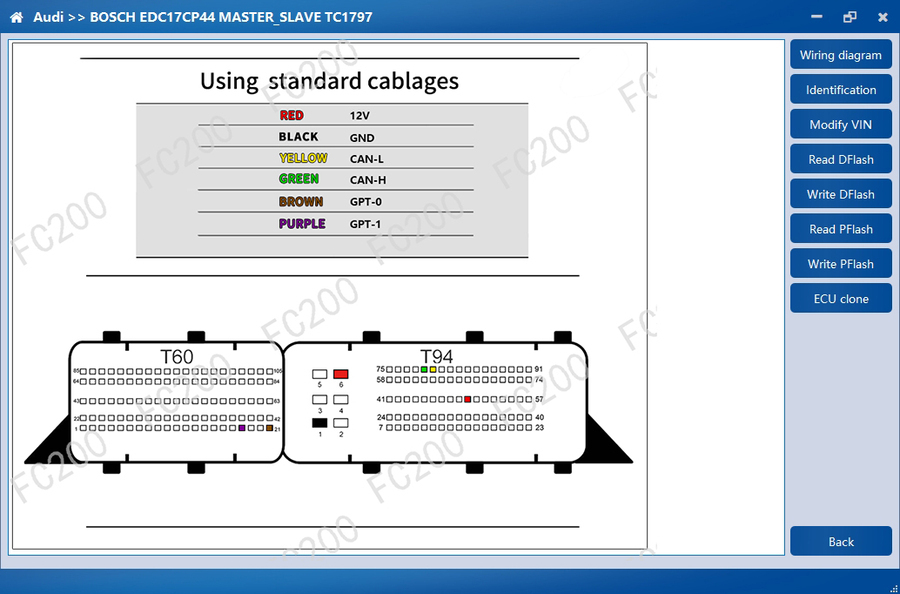

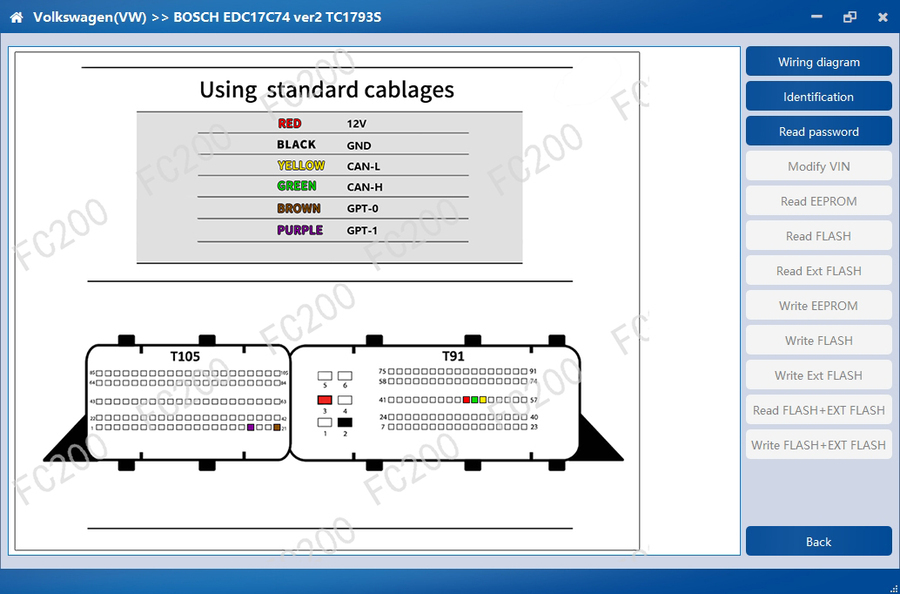

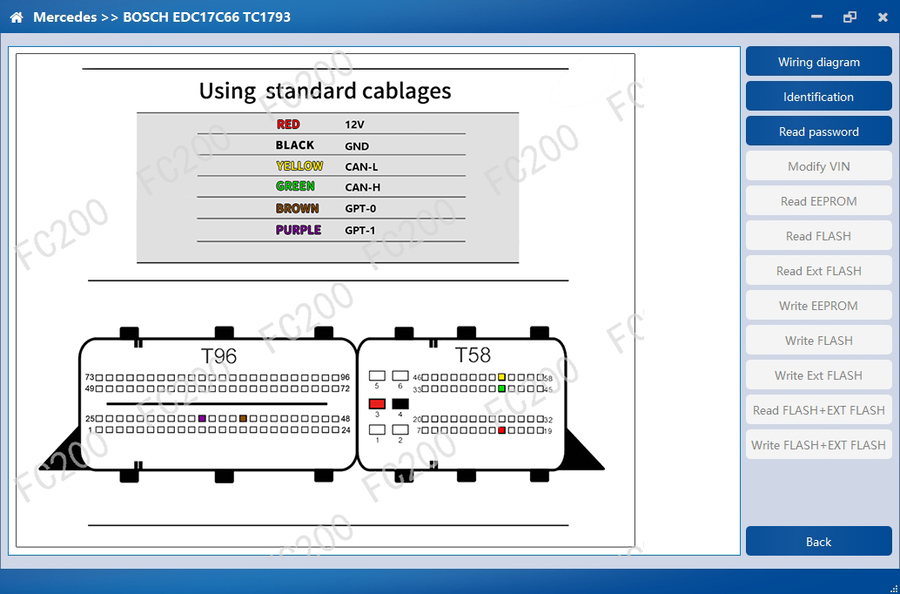

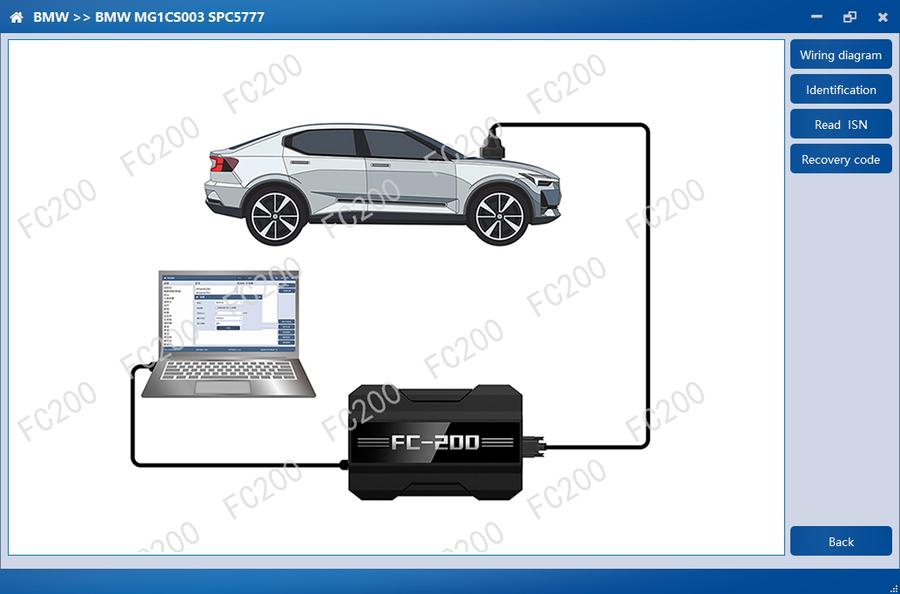

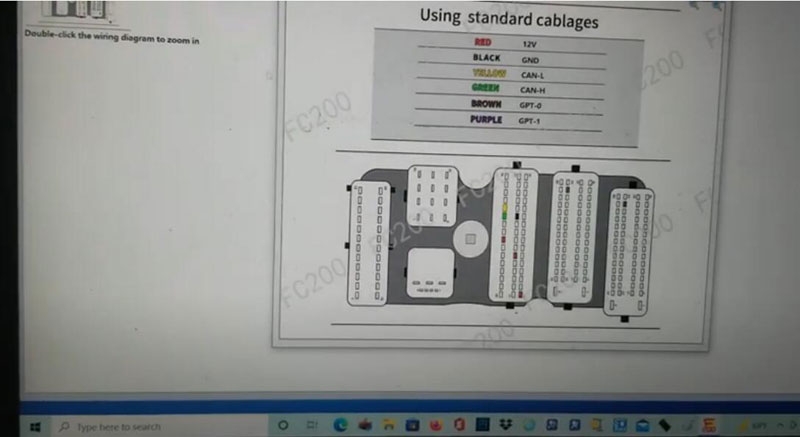

3.Intuitive wiring diagram
Highly paid professional designers are hired to produce, 1:1 simulation, bright colors, to avoid user wiring errors.

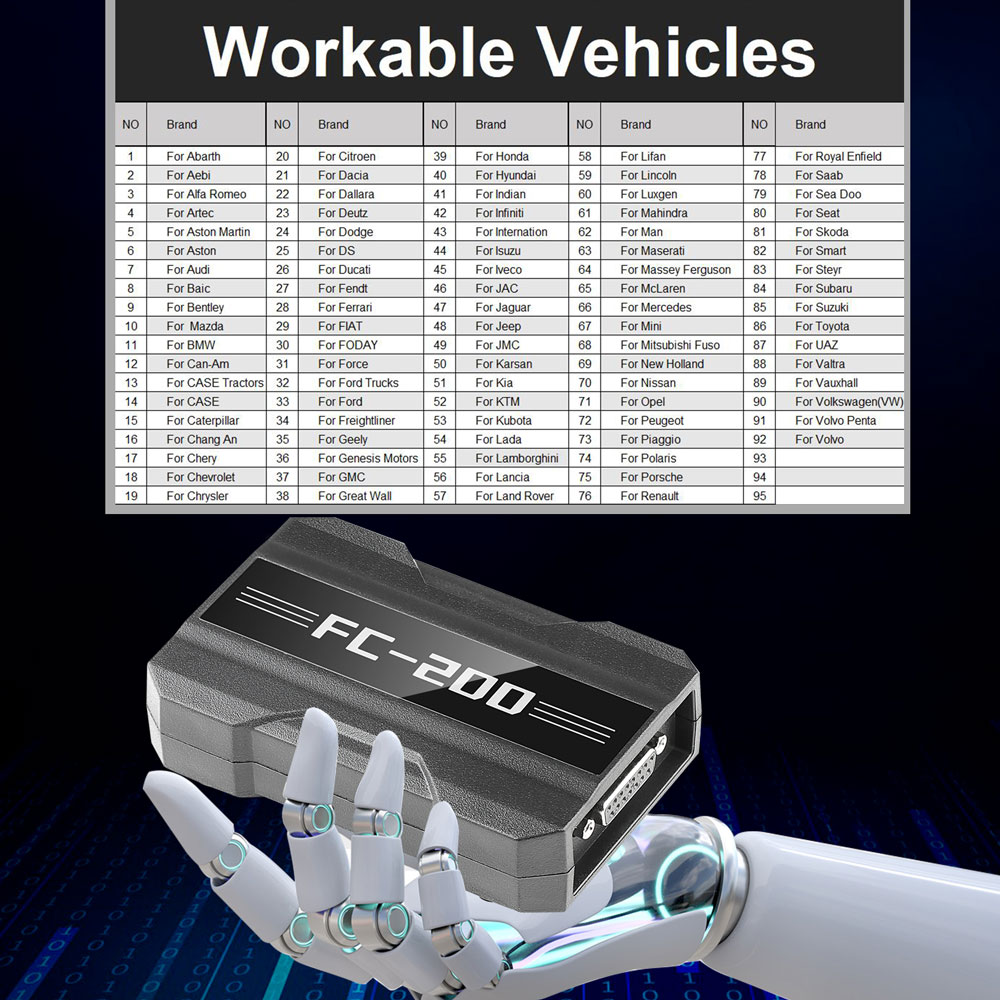

FC200 Model Support:
Support 4200 kinds of ECU, including 80% of the models on the market.

• European Cars: Abbas, Alfa Romeo, Aebi, Artec, Aston, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroen, Dacia, CASE, CASE Tractors, Dallara, Deutz, DS, Ducati, Fendt, Ferrari, Fiat, Jaguar, KTM, Lada, Lamborghini, Lancia, Land Rover, MAN, Maserati, McLaren, Mercedes-Benz, MG, Mini, Opel, Peugeot, Piaggio, Porsche, Renault, Royal Enfield, Saab, SEAT, Skoda, Smart, Steyr, UAZ, Vauxhall, Volkswagen (VW), Volvo, Volvo Penta.
• American Cars: Can-Am, Caterpillar, Chevrolet, Chrysler, Dodge, Ford, Ford Trucks, Freightliner, GMC, Indian, Internation, Jeep, Lincoln, New Holland, Polaris, Hidu.
• Asian Cars: Force, Genesis Motors, Honda, Hyundai, Infiniti, Isuzu, Kassan, Kia, Kubota, Mahindra, Mitsubishi Fuso, Nissan, Subaru, Suzuki, Toyota.
• Chinese Cars: Changan, Chery, Foday, Geely, Great Wall, Iveco, Jianghuai, Jiangling, Lifan, Ferguson, Valtra

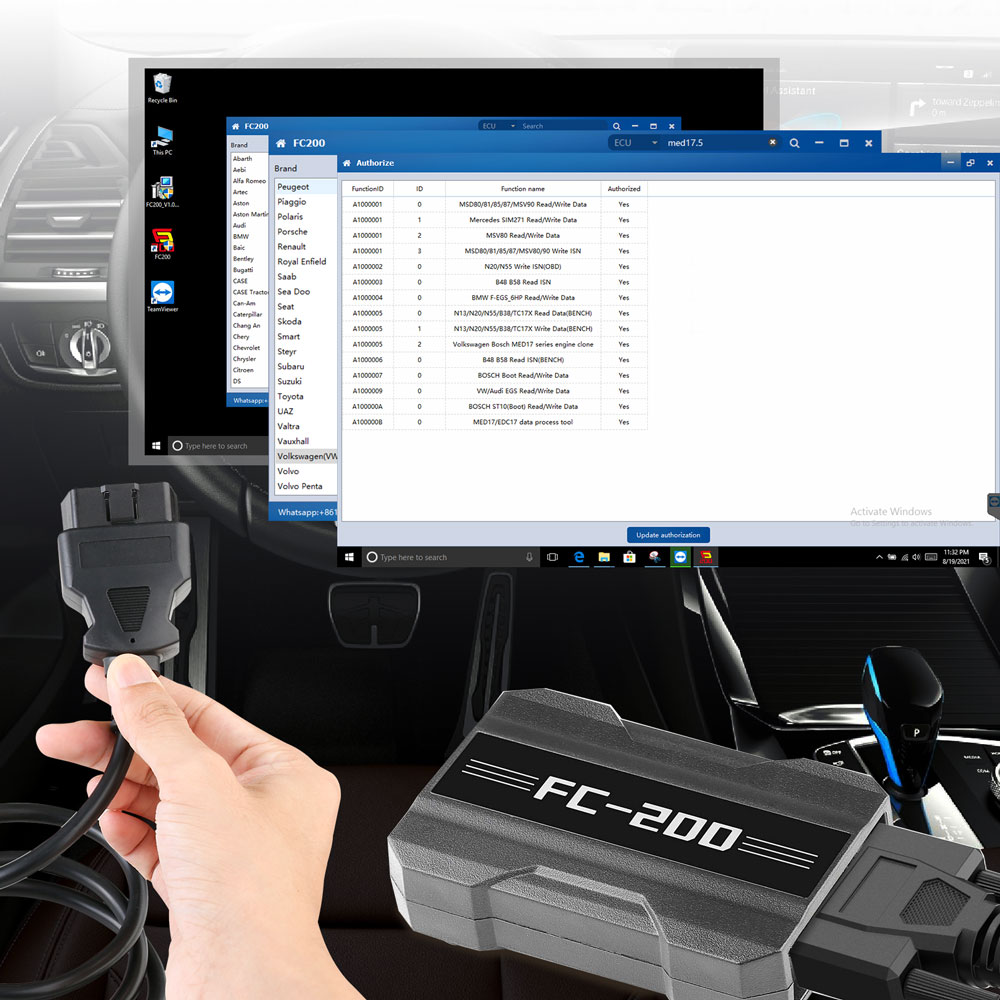

FC200 ECU Programmer Device:

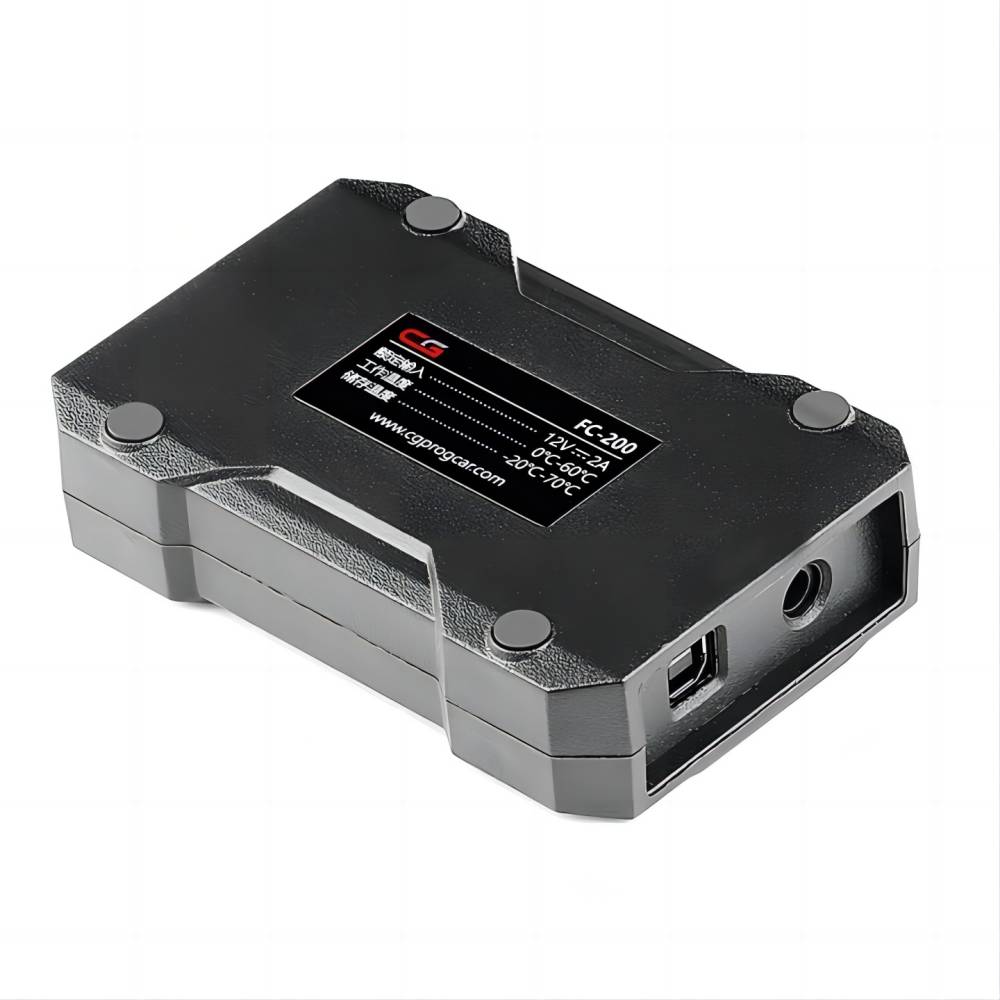

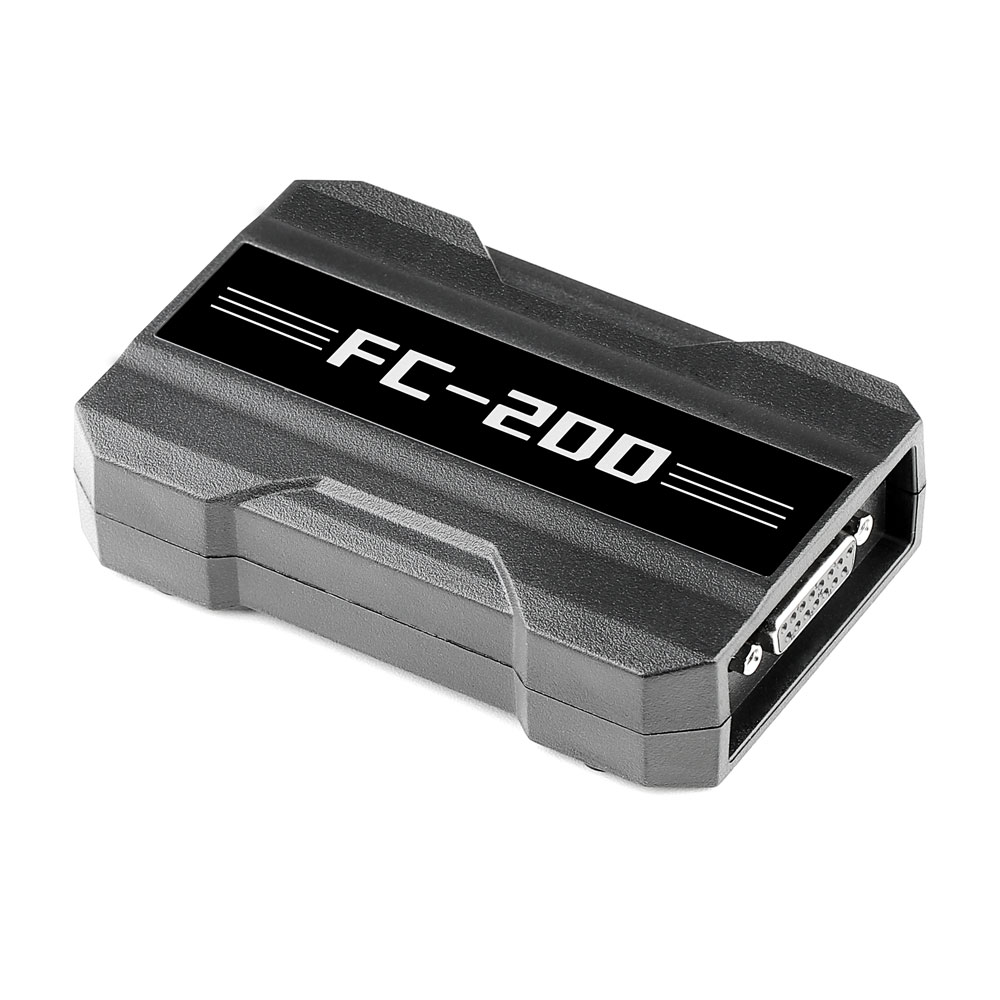

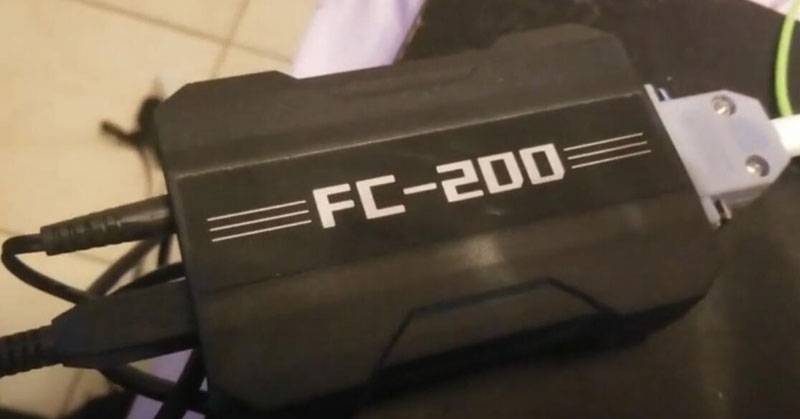

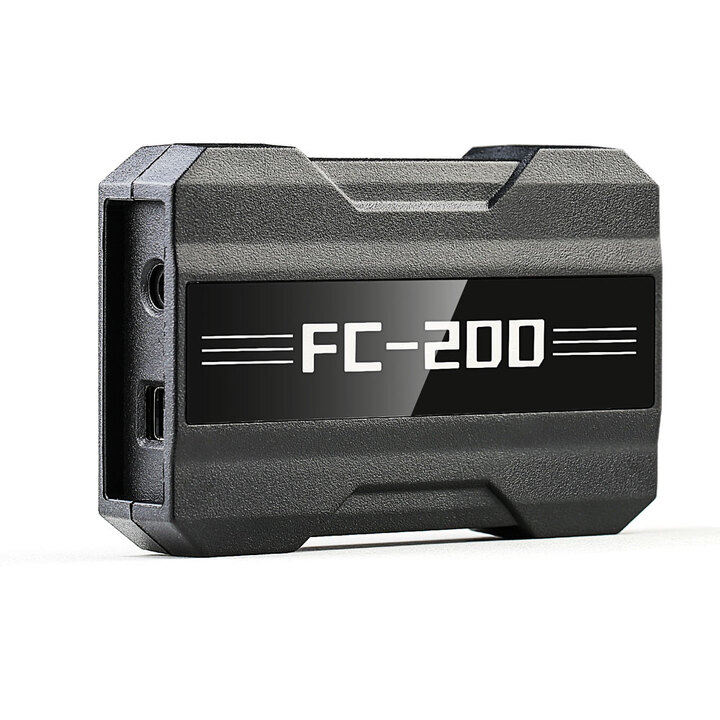

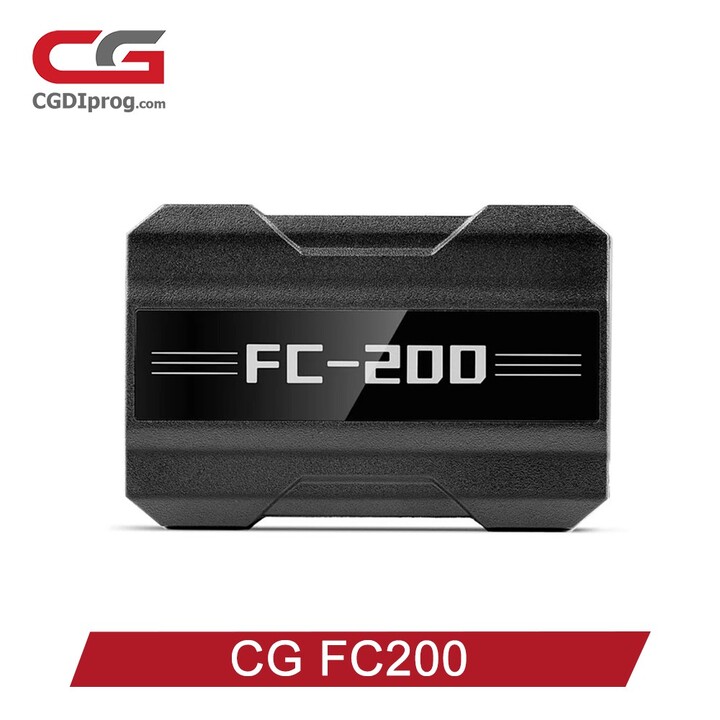

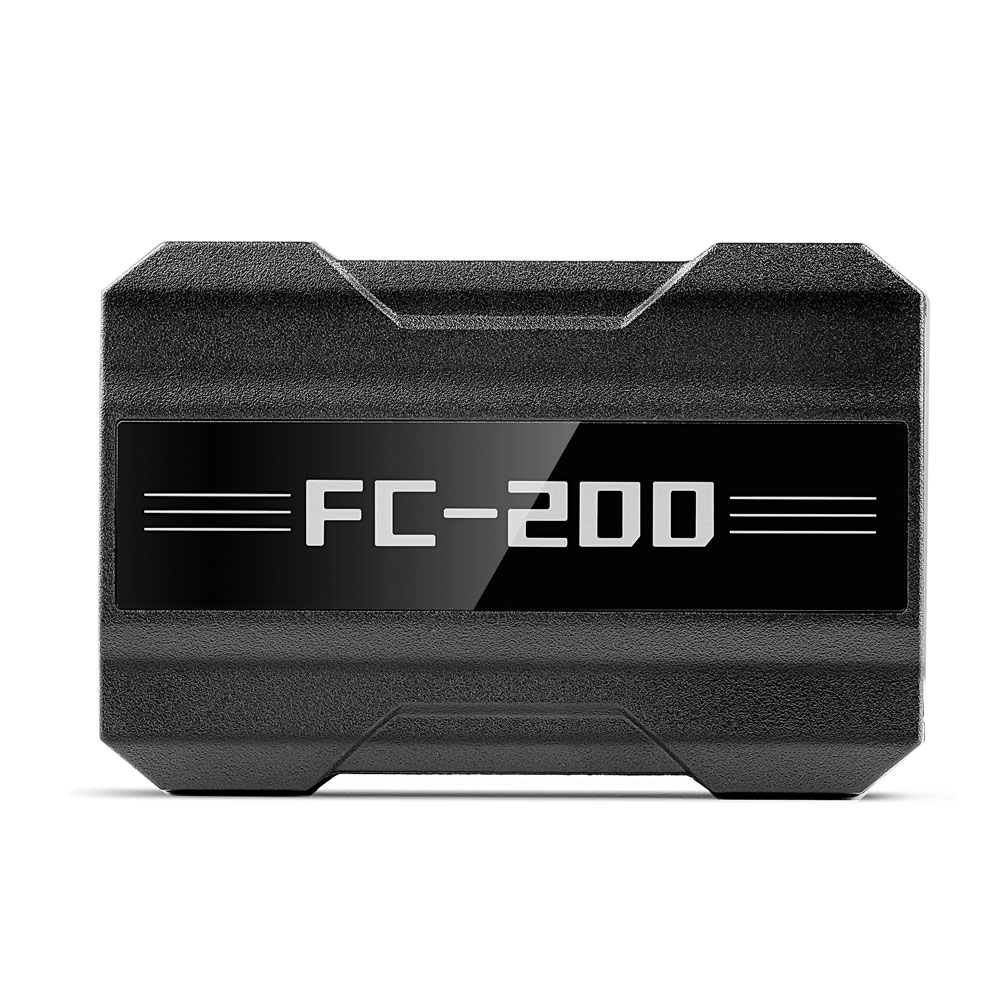

Main unit FC200

• Integrated injection of polymer materials, custom professional internal circuit boards, national patent certification
• Exquisite design, easy to carry, can protect surrounding interference signals, adapt to different operating environments
• There are 3 expansion ports for peripheral devices, which are automatically diagnosed and identified. It is a 12V power outlet, USB port, and DB15 port, DB15 port can be connected with a detachable adapter and OBD cable.

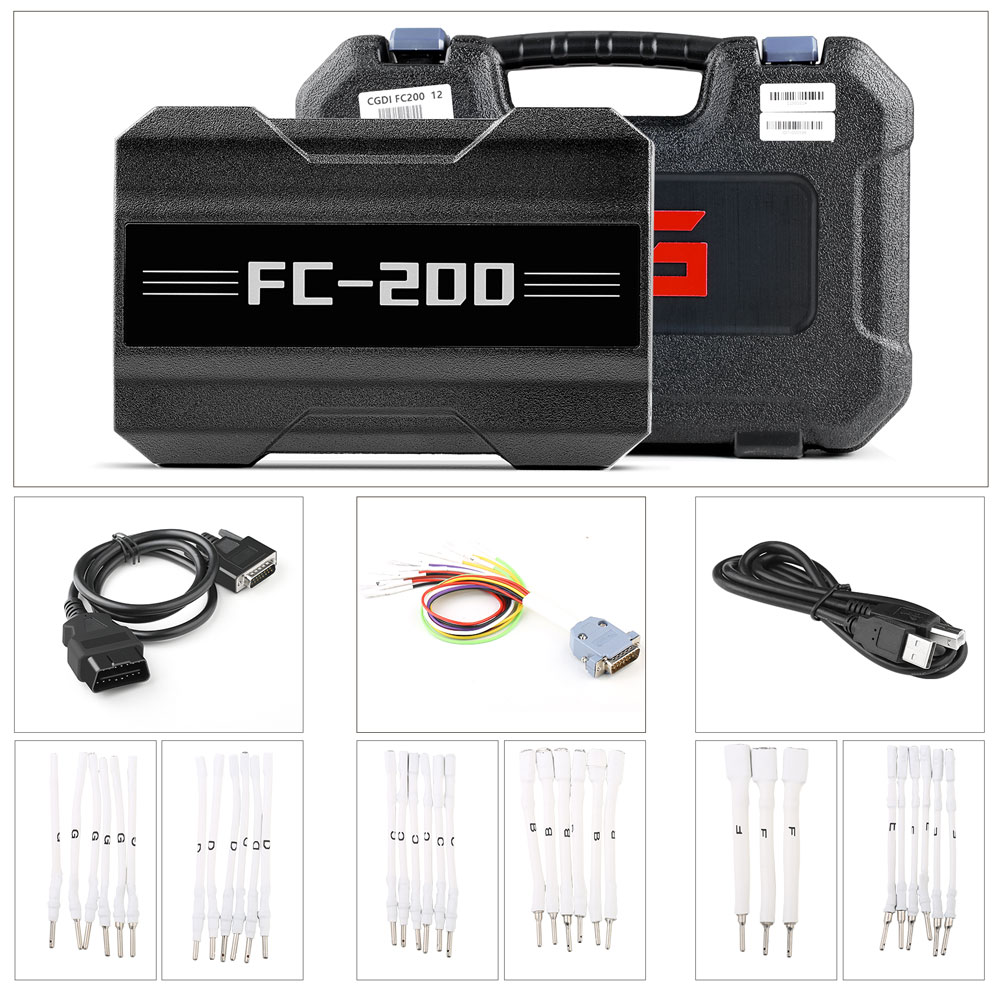

FC200 Adapters

• The vehicle-grade wire harness, which is made of synthetic metal, has excellent internal conductivity and can be used continuously 10,000 times.
• Airtight design, a discreet connection between the ECU and the host to ensure continuous communication and excite your operation
• Equipped with B-type, C-type, D-type, F-type, and G-type pin interfaces, suitable for many types of ECU and EGS

OBD2 Cable

• FC200 obd2 cable is mainly suitable for BMW B48/B58 ECU at present, read ISN via OBD without disassembly.
• 110cm Made of synthetic material High-temperature waterproof Anti-corrosion Designed according to the vehicle OBD port Built-in anti-drop clip makes the connection stable

CG FC200 Latest Update Information:

FC200 V1.2.2.0 Update Details:

1.Added DELPHI ECUs, supporting OBD and BENCH modes:

OBD/BENCH: China Delphi MT34, China Delphi MT80

BOOT: DCM6.2AP

2.Added DENSO ECUs:

ISUZU:

DENSO 275700_7082 SH72546

MITSUBISHI:

DENSO MITSUBISHI_L200 SH72543

DENSO 4D56 SH7059

DENSO RA6 SH7059

DENSO 4N14 SH7059

FIAT:

DENSO RA6 SH7059

NISSAN:

DENSO D3 SH7059

DENSO D4B SH7059

DENSO D40 SH7059

DENSO 3W SH7059

DENSO 23740_5Sxxx_Gen2 SH72530

DENSO G1 SH7059

DENSO 1G SH7059

DENSO H1 SH7059

OPEL:

DENSO 275xxx-xxx SH7059

DENSO GM SH7055

SUBARU:

DENSO KH SH7059

DENSO KS SH7059

DENSO ZY SH7059

DENSO BF SH7059

DENSO GG SH7059

DENSO NN SH7059

DENSO KO SH7059

DENSO MB112700 SH72543

DENSO Subaru SH72543

3.Added ECUs:

BOSCH MED9.6.1 MPC561/2

CONTINENTAL SIM2K_241_ECU TC1767

BOSCH Hongqi_H9_48V_Battery TC1724

4.Added Password Reading function for MSV80 ECU

5.Optimize Connection Identification function for GM Exx/6T/L models’ ECU/TCU

6.Added Password Reading function for CONTINENTAL SID208, SID209 ECU

7.Fixed the issue of GM E80 connection failure.

CG FC200 V1.2.1.0 Registered Version (2024.06.25)

1. Added China DELPHI ECU, supporting OBD and BENCH modes:
MT20U MC912DT128
MT22U MC9S12XET256
MT20U2 MC9S12KG256
MT22.1 MC9S12XEQ512
MT22.1.1 MC9S12XET256

2. Added DELPHI ECU:
BENCH mode:
China DCM7.24
China DCM7.1AP
Hyundai/Kia DCM7.1AP
Tata DCM2.5
BOOT mode:
DCM2.7AP

3. Added DENSO ECU:
Toyota:
GEN3 R7F701202
GEN3 R7F701216
Mazda:
Pxxx SH72543
S5xx SH72546
SHxx SH72543
Suzuki:
33920-xxxx_1N83 MPC5746

4. Add PFlash verification function to Denso ECU
5. Add PFlash/ExtFlash verification function to BOSCH MPC5xx ECU
6. Optimize Flash verification function for BOSCH MG1/MD1 ECU

CG FC200 V1.2.0.0  Registered Version NEW (2024.05.11)

1. Added CONTINEN type ECU: SID209, SIM2K-341 (ECU)
2. Optimize the verification function of BOSCH/CONTINENTAL/KEFICO/DELPHI TC17 ECUs
3.MED17_China adds a new password reading function
4. Added BOSCH TC17 ECUs: MINI: MED17.2.2, Ford/MB: DCU17PC01, Hyundai: DCU24, Peugeot:
ME17.9.53, BOBCAT: EDC17C87, McLaren: ME17.8.33

5. Added Renesas chip ECU:
Honda: KEIHIN 37820-xxx-xxx SH7058, DELPHI DCM3.7AP_CHINA SH72544
FAW: DENSO TD112700-xxxx SH72530
Hyundai: DENSO 33910-05005 adds the function of reading DFlash

6. Added Delphi TC2xx ECU: DCM7.1A/DCM7.1B

CG FC200 V1.1.9.0 Registered Version (2024.03.23)
1. Add BOSCH ST10 ECU and add verification function:
Abarth: ME7.9.10
Alfa Romeo: ME7.9.10, MED7.1.1
Audi: ME7.5.30, ME7.5, MED7.5.10
Bentley: ME7.1.1
BMW: ME7.2
Chery: ME7.9.7, M7.9.7, ME7.9.71
Chrysler: ME2.8.1
Peugeot Citroen: M7.4.4, ME7.4.4, ME7.4.9, ME7.4.6, VALEO_J34P
Ferrari: ME7.1.1
Fiat: ME7.9.9, MED7.6.2, ME7.9.10, MED7.1.1, VALEO_J34P
Geely: M7.9.7
Honda: ME7.9.7, ME7.9.3
Hyundai Kia: M7.9.7, ME7.9
Lancia: MED7.6.2, MED7.1.1, ME7.9.10
Maserati: ME7.1.1
Mercedes: ME2.8, ME2.8.1
Mitsubishi: ME7.7.1
Opel: ME7.6.4
Polaris: M7.9.7
Porsche: ME7.5, ME7.8.1, ME7.2, ME7.8
SAIC: ME7.8.8
Volkswagen Seat Skoda: MED7.5.10, ME7.5.30, ME7.5
Toyota: ME7.9.5
Volvo: ME7.0, ME7.0.1

2. Added DENSO ECU:
Mazda: DENSO R2AA/R2AB/R2AC/R2AJ/R2AK/R2AW/R2AX/R2BG/R2BP/R2BR/R2BS, DENSO RF7x/RF8x
Hyundai/Kia: DENSO 33910-05005
Suzuki: DENSO 33920-67P0

3. Other new ECUs:
Chevrolet/Holden/Opel: DELPHI DCM3.7AP
Suzuki: ME17.9.64
Ford: MG1CS017

4. A new button for "Vehicle Fault Code Support List" is added to the main interface.

BUG FIXED:
1. Fix the problem of EEPROM reading error in ME7.5.20/ME7.5.10/ME7.5 and other ECUs
2. Fix the problem that some ECUs such as DQ380/1 report a program error when writing after verifying PFlash.
3. Fixed the problem of failure to modify VIN in new versions of Mercedes-Benz MED17.7.3/ME17.7.7 and Volkswagen MED17.5.25/MED17.5.5 models.

V1.1.8.0  Registered Version (2024.02.01)
1. Added Hyundai/Kia TCU: TC60.x.x
2. M7/ME7/M17 ST10F725/6 ECU adds the function of turning off the anti-theft system
3. GM E80 adds BOOT mode
4. BMW's new ECUs: MEVD17.8.4, ME17.2.42
5. Peugeot/Citroen MED17.4.2 TC1767 new platform mode
6. EDC17C84 adds the function of modifying VIN
BUG FIXED:
1. Fix the problem that some MD1CS089 cannot start the car after reading and writing data.
2. Fix the problem of Mercedes-Benz 9GT TCU cloning failure
3. Fix the problem of failure to write PFlash in GM 6T/6L gearbox
4. Fix GPEC2A and other unrecognized problems
5. Fix the problem that some ECUs such as EDC16C1 and EDC16CP35 fail to write to ExtFlash.
6. Volkswagen MED9.1 MPC563/4 supplementary wiring diagram
7. Hyundai/Kia EDC17CP14 corrected reading password wiring diagram
8. Volkswagen MED17.5 platform mode supplements other wiring diagrams
9. IVECO EDC17C69 supplementary wiring diagram

FC200 V1.1.7.0 Registered Version (2023.11.24)
1.Add Volvo Electric Equipment ECU: MB279700-9500, MB279700-9801, MB279700-9811
2.Add Audi ECU: Simos8.4x, Simos12.x
3.New Hyundai ECU/TCU: SIM2K-240_ ECU, SIM2K-341_ TCU
4.Fix issues with some ECU cloning failures: MED17.3.1/MED17.7.2/MED117.7.3/MED17.5.5 and general Exx series, etc
5.Fix the issue of some universal ECU recognition failures: E78/E39/E39A/E80, etc
6.Lovol added ECU: EDC17CV43
7.BMW adds ECU: MEVD17.8.4
8.Added ECU for PFlash verification algorithm: MSV90, SID807EVO, EMS3110, SIM2K-240_ ECU, SIM2K-341_ TCU, Simos12. x, Simos8.4
9.Add and modify ECU for VIN: CPGDSH1.21.6, CPGDSH2.2x. x
10.Optimize the PFlash verification algorithm for DQ380
11.Fix some bugs and optimize software performance

FC200 V1.1.6.0 Registered Version (2023.10.16)
1.Added CONTINENTAL TC17 type engine computers (BOOT mode): SID310, SID807EVO, EMS3110;
2.Added CONTINENTAL SPC5xx type engine computers (BOOT mode): GPEC3, GPEC2A, GPEC4, GPEC4LM, GPEC2;
3.Added CONTINENTAL TC17 type engine computer (BOOT mode): SIMOS8.2x, EMS2511, EMS24xx, EMS2205, SDI9, SDI3, SDI4, SDI10.x, SDI21.x;
4.Added new GM type engine computer: E98;
5.Added the Flash verification function of the gear box computer: DQ380, 8HP, 7DCT300, 9GT-VGS-NAG3;
6.Added PFlash verification function for CONTINENTAL TC17 engine computer;
7.Added the function of independently reading and writing DFlash/PFlash/ExtEEPROM/ExtFlash: MSD80/MSD81/MSD85/MSD87/MSV90/SIM271KE;
8.Fix some BUGs and optimize software performance.

FC200 V1.1.5.0 (2023.08.18)
1.New platform mode engine for Bosch MPC5xx class: (Note: To be used with MPC5xx adapter)
EDC16U31、EDC16C1、EDC16C10、EDC16C31、EDC16C32、EDC16C34、EDC16C35、EDC16C36、EDC16C37、EDC16C39、EDC16C41、EDC16C9、EDC16CP33、EDC16CP34、EDC16CP36、EDC16CP39、EDC16U34、EDC16UC40、ME9.1.1、ME9.6.1
2.Newly added BOSCH TC17 series platform and boot mode engines: DCU17HD01、DCU17PC42、DCU17PC43、DCU17CV51、DCU17PC_ DNX
3.KEFICO TC series engines add PFlash verification function
4.GM series engines add PFlash verification function
5.Fix the issue where the 8HP transmission does not support the E-series (R5F72519R)
6.Optimize the verification algorithm for VGS2-FDCT type transmissions
7.Fix some MD1CS089 engine connection failure issues
8.Fix some bugs and optimize software performance

FC200 V1.1.4.0 Registered Version  NEW (2023.07.17)
1.Newly added CONNECTAL TC17 platform mode engines: SDI6, Simos8.3x, Simos8.5x
2.Newly added CONNECTAL TC17 BOOT mode engines: SDI6, SDI7, Simos8.1x, Simos8.3x, Simos8.5x, SID208, PCR2.1
3.BOSCH MPC5xx chip ECU adds verification function
4.New platform mode engine: MD1CS089
5.New Volkswagen transmission mileage repair function: DQ200 TC1784
6.Fix the function of modifying the VIN of Volkswagen ME17.5.22/24/26 and other engines
7.Fix some PCR2.1 write PFlash failure issues

V1.1.3.0  Registered Version NEW (2023.05.24)
1.Newly added CONNECTAL TC17 platform mode ECU: PCR2.1, SDI7, DPS6
2.Add BOSCH MPC5xx platform mode ECU: MED9.1, MED9.5, MED9.5.10, ME9.0, EDC16CP31, EDC16CP35, EDC16C2, EDC16C8
3.New Volkswagen TCU mileage repair function: DQ200 TC1766, DQ250, VL381, DL382
4.Add Hyundai/Kia/Ssangyong KEFICO CPEGD2.20. x ECU functions: platform mode data read and write, modify VIN functions
5.Add Mercedes Benz CRD2. x MPC556x engine platform mode
6.DELPHI TC17 chip ECU adds PFLASH verification function
7.ECU with PFLASH verification function added to BOSCH ST10F chip: ME7.4.5
8.GM 6T30, 6T80, 6L80 TCU added PFLASH verification function
9.Diesel ECU EDC17C53, EDC17C63, EDC17C81 and other newly added anti-theft system shutdown functions

CG FC200 Version V1.1.2.0 Update Notice on Apr 7th, 2023
1. Fix the problem of engine recognition and read/write failure in GM E38, E67 and E39
2. Add GM E37, E39A, E78, E80 and E83 engine platform mode
3. GM E38, E67, E39 and E39A engines add Ext FLASH verification function
4. Add the "time repair" function of "Lovol harvester" to support the EDC17CV53 engine of Lovol harvester
5. Benz VGS-FDCT, VGS2-FDCT and VGS-FCVT gearbox add PFLASH verification function
6. Volkswagen DL501 Gen2 and DL382 transmissions add PFLASH verification function
7. Add BOSCH ST10 engine: M7.4.4, ME7.3.2, ME7.4.4
8. Fix the connection failure of DELPHI CRD3.10, CRD3.xx TC1797 and other engine platform modes

CG FC200 V1.1.1.0 Software Update Notice on Feb 1st, 2023
1. Setup interface adds-Server Selection function
2. Optimize the device activation interface (add the "Activate" prompt)
3. Repair the failure problem of the Bosch query abroad
4. Added GM AcDelco transmission platform mode: GM 6T30/35/40/45/50, GM 6T70/75/80, GM 6L45/50/80/90
5. New BOOT mode of BOSCH ST10 engine: ME7.1.1, ME7.5.10, ME7.8.2, and MED 7.6.2
6. New BOSCH TC17 engine platform mode: ME17 TC1728 (China)
7. New BOOT mode of KEFICO TC17 engine: CPGDSH2.2x.x, CPGDSH1.26.1, KME 1.9.3.1
8. New BOSCH VAG gearbox PFLASH calibration function: DQ200 TC1784, DQ200 TC1766, DQ250 TC1766, DL501Gen1 TC1766, VL381 TC1766
9. Newly modified VIN model: MED 17.8.3

CG FC-200 V1.1.0.0 Software Update Notice on Dec 13th, 2022:
1. Added DELPHI platform and BOOT engine: CRD3.10, CRD3.E1, CRD3.F1, CRD3E.1, CRD3P.B0, CRD3P.C0, CRD3P.D1, CRD3P.G0, and CRD3xx
2. Added BOSCH BOOT engines: ME7.5.20, M7.9.5, ME7.9.51, and ME7.9.52
3. Add PFLASH check function for MG1C, MD1C SPC5777 and TC298TP engines of BOSCH
4. Added password reading function in the platform mode of GM engine E39
5. Optimize the PFLASH verification algorithm of BOECH's TC17 series engines
6. Added BOSCH platform engine: EDC17CV53
7. Fix some bugs and optimize software performance

CGDI ECU Programmer: CG100 III Prog vs. CG Pro 9s12 vs. CG FC200

CG FC-200 Package:

• 1pc x CGDI FC200 Host
• 1pc x OBD Cable
• 1pc x Jumper
• 1pc x USB Cable
• 6pcs x G-type Adapter Cable
• 3pcs x F-type Adapter Cable
• 6pcs x E-type Adapter Cable
• 6pcs x D-type Adapter Cable
• 6pcs x C-type Adapter Cable
• 6pcs x B-type Adapter Cable

FC200 Optional adapter: No Need Disassembly Adapter for 6HP 8HP MSV90 N55 N20 B48 B58 B38 etc

1. Firstly, you need to own CG FC 200 and Yanhua mini acdp to read out the ISN, so that you can go on with key making.

2. Choose BMW-3 series-328i-Bosch MEVD17.2.9 TC1797, and all the relevant information appears.

3. Access the wiring diagram, which can be enlarged for better visibility. Proceed with the identification process.

4. Read ISN. The entire operation is completed rapidly within a minute.

5. Now you can proceed to create a key using CGDI BMW tool.
